GORE® STA-PURE® Pump Tubing
Series PCS; For Single-Use Peristaltic Pump Applications
AdvantaPure is pleased to offer GORE® STA-PURE® Pump Tubing for your Single-Use process biotech and pharmaceutical applications. As experts in molded connections, AdvantaPure can now overmold GORE STA-PURE Pump Tubing into any manifold tubing assembly as its pump element. Alternatively, connections may be made using barbed fittings and clamps or crimped-on sanitary Tri-Clamp® fittings.
GORE STA-PURE Pump Tubing, Series PCS, is specially formulated for extended performance in peristaltic pumps. It’s manufactured with a patented composite of platinum-cured silicone rubber and ePTFE for a fluid transfer product that offers durability, reliability and consistent performance.

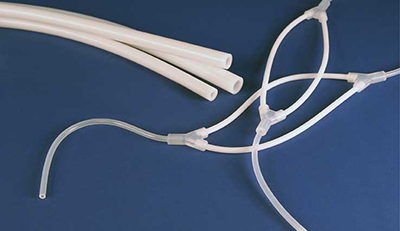

AdvantaPure connects GORE STA-PURE Pump Tubing to any of its AdvantaSil® platinum-cured silicone tubing using overmolding technology. GORE STA-PURE Pump Tubing is positioned in the assembly as the long-lasting pump element. The overmolding process results in a smooth, fluid contact surface with optimal flow for your pharmaceutical and biopharm product.
KEY TUBING FEATURES
- Minimizes the risk of tubing rupture in pumps
- Withstands operating pressures up to 100 psig – ideal for higher pressure uses
- Lasts up to 70 times longer in pumps than extruded silicone tubing, enabling long production cycles
- Provides process stability and consistent flow rates – outperforms silicone in flow-rate decay
- Lower spallation as compared to extruded silicone tubing – refer to Validation Summary Report
- Supports sterile fluid processing
- Fluid contact surface: platinum-cured silicone
- A choice of connection options: overmolding, barbed fittings and clamps, crimped-on Tri-Clamp fittings
- Manufactured and packaged in an ISO Class 7 clean room
- Sterilizable by CIP/SIP and autoclave
- Made in USA
- Validation Guide and Validation Summary Report and Extractables test packages available upon request
GORE STA-PURE Pump Tubing comes in a range of sizes, from 1.6mm / 1/16″ I.D. to 25.4mm / 1″ I.D.
SPECIFICATIONS
| Gore Product Code | ID (in) | ID (mm) | OD (in) | OD (mm) | Wall (in) | Wall (mm) | Comparison Size ID x OD x L (in) |
| YA12ME | .063 | 1.60 ± 0.20 | .197 | 5.0 | .067 | 1.70 ± 0.20 | 1/16 x 3/16 x 12 |
| YA14ME | .063 | 1.60 ± 0.20 | .197 | 5.0 | .067 | 1.70 ± 0.20 | 1/16 x 3/16 x 14 |
| ZA12ME | .125 | 3.20 ± 0.25 | .260 | 6.6 | .067 | 1.70 ± 0.20 | 1/8 x 1/4 x 12 |
| ZA14ME | .125 | 3.20 ± 0.25 | .260 | 6.6 | .067 | 1.70 ± 0.20 | 1/8 x 1/4 x 14 |
| AA12ME | .185 | 4.70 ± 0.25 | .319 | 8.1 | .067 | 1.70 ± 0.20 | 3/16 x 5/16 x 12 |
| AA14ME | .185 | 4.70 ± 0.25 | .319 | 8.1 | .067 | 1.70 ± 0.20 | 3/16 x 5/16 x 14 |
| BA12ME | .248 | 6.30 ± 0.25 | .382 | 9.7 | .067 | 1.70 ± 0.20 | 1/4 x 3/8 x 12 |
| BA14ME | .248 | 6.30 ± 0.25 | .382 | 9.7 | .067 | 1.70 ± 0.20 | 1/4 x 3/8 x 14 |
| CA12ME | .311 | 7.90 ± 0.25 | .445 | 11.3 | .067 | 1.70 ± 0.20 | 5/16 x 7/16 x 12 |
| CA14ME | .311 | 7.90 ± 0.25 | .445 | 11.3 | .067 | 1.70 ± 0.20 | 5/16 x 7/16 x 14 |
| CA16ME | .311 | 7.90 ± 0.25 | .445 | 11.3 | .067 | 1.70 ± 0.20 | 5/16 x 7/16 x 16 |
| AB14ME | .185 | 4.70 ± 0.25 | .382 | 9.7 | .098 | 2.50 ± 0.20 | 3/16 x 3/8 x 14 |
| BB14ME | .248 | 6.30 ± 0.25 | .445 | 11.3 | .098 | 2.50 ± 0.20 | 1/4 x 7/16 x 14 |
| CB14ME | .311 | 7.90 ± 0.25 | .508 | 12.9 | .098 | 2.50 ± 0.20 | 5/16 x 1/2 x 14 |
| DB14ME | .370 | 9.40 ± 0.25 | .567 | 14.4 | .098 | 2.50 ± 0.20 | 3/8 x 9/16 x 14 |
| DB24ME | .370 | 9.40 ± 0.25 | .567 | 14.4 | .098 | 2.50 ± 0.20 | 3/8 x 9/16 x 24 |
| BC24ME | .248 | 6.30 ± 0.25 | .508 | 12.9 | .130 | 3.30 ± 0.20 | 1/4 x 1/2 x 24 |
| DC24ME | .370 | 9.40 ± 0.25 | .630 | 16.0 | .130 | 3.30 ± 0.20 | 3/8 x 5/8 x 24 |
| EC24ME | .492 | 12.50 ± 0.25 | .752 | 19.1 | .130 | 3.30 ± 0.20 | 1/2 x 3/4 x 24 |
| EC26ME | .492 | 12.50 ± 0.25 | .752 | 19.1 | .130 | 3.30 ± 0.20 | 1/2 x 3/4 x 26 |
| FC24ME | .618 | 15.70 ± 0.50 | .878 | 22.3 | .130 | 3.30 ± 0.20 | 5/8 x 7/8 x 24 |
|
Note: Non-listed sizes and custom lengths are available. Call an AdvantaPure Sales Support Specialist for details. |
Tubing Length Legend 12in = 304.8mm ± 3.0 14in = 355.6mm ± 3.0 16in = 406.4mm ± 3.0 24in = 609.6mm ± 3.0 26in = 660.4mm ± 3.0 |
MORE INFORMATION
- Download the GORE STA-PURE Pump Tubing Data Sheet
- Request to download the GORE STA-PURE Pump Tubing Validation Guide and Validation Summary Report or Extractables Data
NOTES
Assemblies that include GORE STA-PURE Pump Tubing cannot be gamma irradiated or be included in AdvantaPure’s validated sterility assurance program.
GORE STA-PURE Pump Tubing, Series PCS, has been tested by Gore for durability in peristaltic pumps under rigorous conditions following various testing protocols.
When products are used as part of an assembly, the pressure rating of the fitting connection may be less than the hose pressure rating. Testing is recommended.
The data listed throughout this web site is meant only as a guide to aid in design, and is believed to be reliable; however, nothing stated shall constitute a guarantee or warranty for any application. Product field-testing should be performed to find the actual values for a specific application.
If you’re interested in incorporating GORE STA-PURE Pump Tubing as the pump element in your Single-Use tubing manifold assembly, speak with a Technical Support Specialist to discuss your application.
To learn more about GORE STA-PURE Pump Tubing, visit https://www.gore.com/products/gore-sta-pure-pump-tubing-series-pcs
GORE® and STA-PURE® are trademarks of W. L. Gore & Associates.

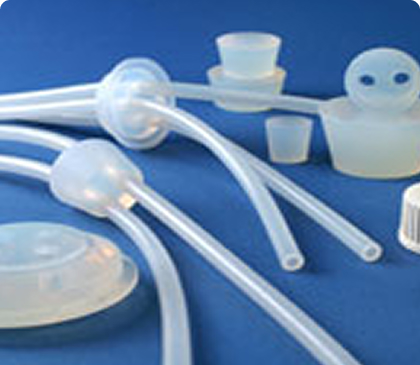

MOLDED FILLING ASSEMBLIES
Sterile molded filling assemblies from AdvantaPure continue the shift to Single-Use processes that save time and reduce the risk of cross contamination while increasing productivity between batches. Assemblies can be quickly installed and operational in a fraction of time as compared to traditional systems used in pharmaceutical and biotech filling.

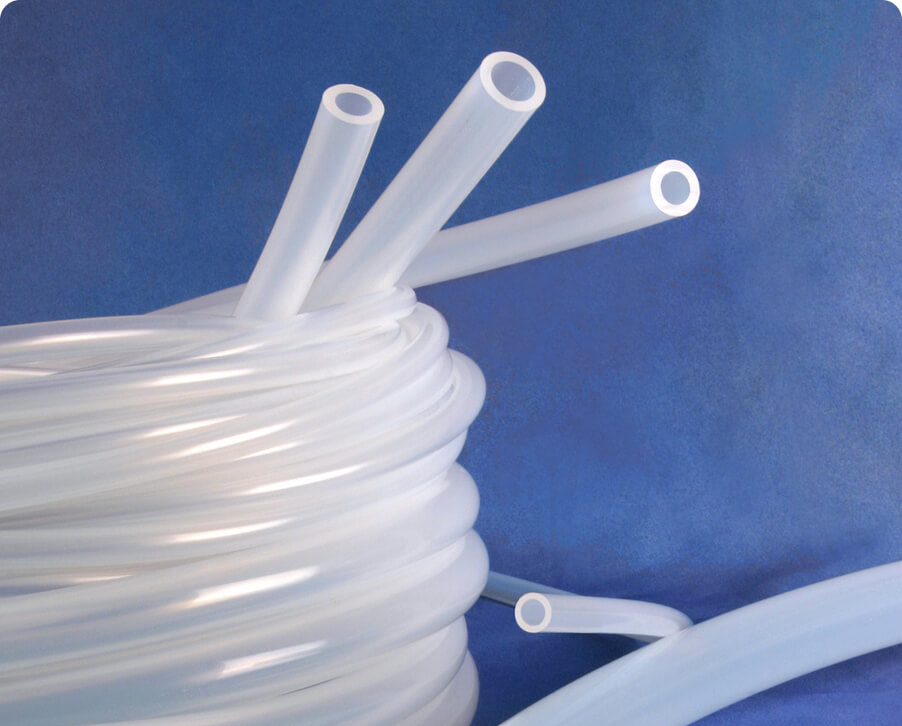

Platinum-Cured Silicone Tubing and Hose
The AdvantaSil® family of high purity products include:

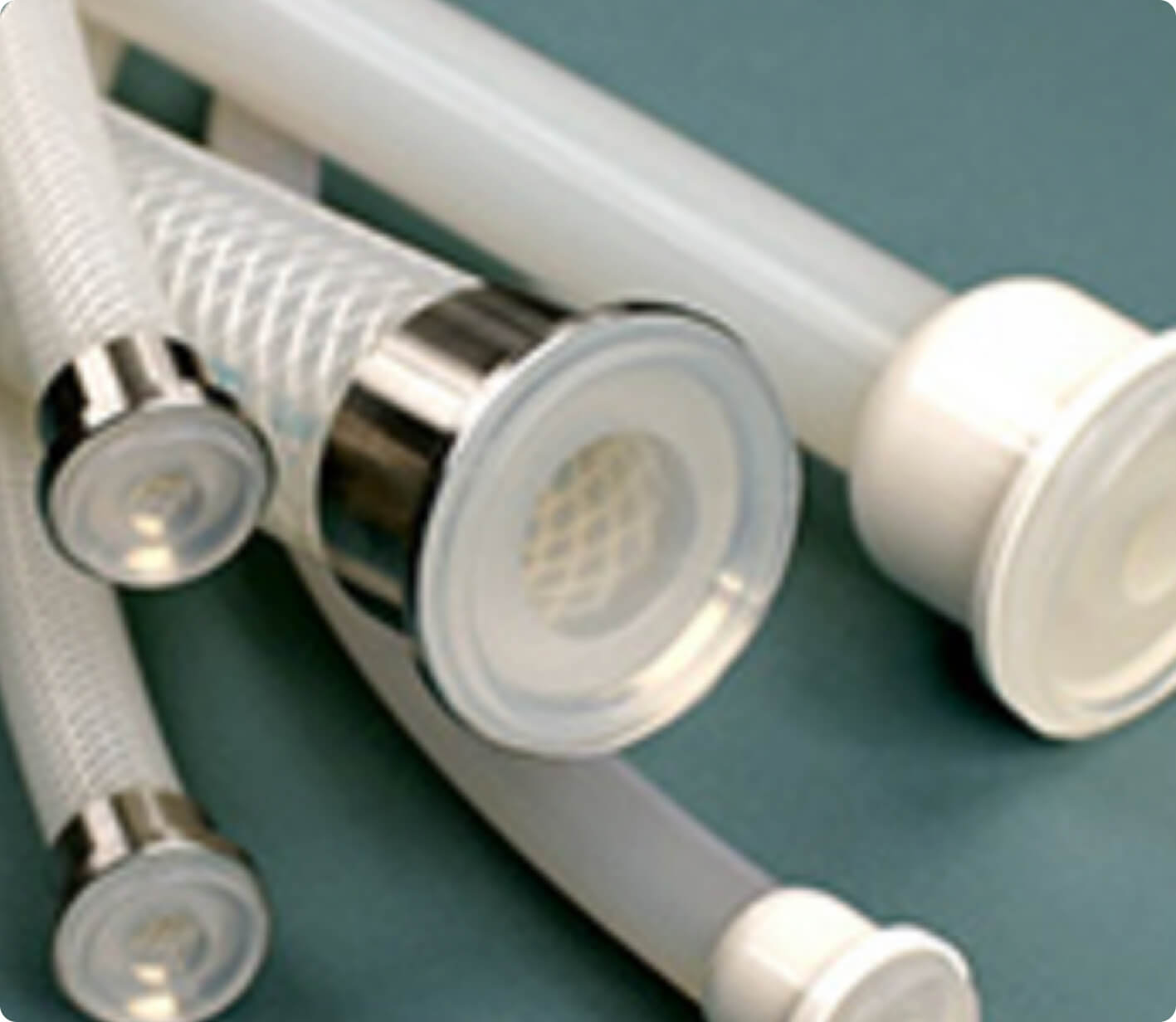

• Unreinforced Tubing • Braid Reinforced Hoses • Pump Grade Tubing • Wire Reinforced Suction/Discharge Hoses
