Oetiker® Clamps

Ear Type Clamps



To complete a tubing or hose installation, clamps are typically necessary. The unique and compact ear-type clamping system developed by Hans Oetiker is a popular item. Its simple design provides a strong clamping system that never needs retightening. The Oetiker name, as well as the products it represents, is well known and respected throughout the world.

Oetiker Clamps

KEY FEATURES

  • Oetiker ear type clamps “breathe” and adapt to the expansion and contraction of hose affected by thermodynamics or aging – no need to retighten
  • Clamps are lightweight and compact
  • Provides a tamper-proof seal without damage to the hose

Oetiker One Ear Clamps One Ear – Stainless Steel

  • Made of UNS S30400 (DIN 1.4301) stainless steel
  • Features a mechanical lock at the joint instead of a spot weld – prevents failure due to corrosion
Part Number Note  Nominal OD  Minimum OD  Maximum OD
5820073   3/8  .350  .414
5820094   15/32  .409  .484
5820101   1/2  .449  .524
5820115   35/64  .469  .551
5820122   9/16  .496  .571
5820136   5/8  .532  .618
5820150   11/16  .594  .669
5820157   23/32  .618  .728
5820164   3/4  .669  .779
5820178   13/16  .717  .827
5820192   7/8  .780  .890
5820206   15/16  .839  .949
 5820220   .898  1.008
5820234 [B]  1-1/16  .945  1.067
5820248 [B]  1-1/8  1.004  1.126
5820262 [B]  1-3/16  1.063  1.185
 5820276 [B]  1-1/4  1.122  1.244
5820290 [B]  1-5/16  1.181  1.303
5820304 [B]  1-3/8  1.240  1.362
5820318 [B]  1-7/16  1.299  1.421
5820325 [B]  1-15/32  1.358  1.480
5820332 [B]  1-1/2  1.378  1.500
5820346 [B]  1-9/16  1.437  1.559
[B] Limited stock availability; lead times and minimums may apply – call for details.

Oetiker One Ear Clamps One Ear Stepless – Stainless Steel

  • Made of UNS S30400 (DIN 1.4301) stainless steel
  • Patented design guarantees 360° seal preventing leaks on soft or thin walled hose or tubing
  • One-ear design allows easy accessibility
Part Number Note  Nominal OD  Minimum OD  Maximum OD
5825351   9/32  .228  .275
5825365   5/16  .268  .315
5825379   11/32  .275  .343
5825393   3/8  .307  .374
5825400   25/64  .327  .394
5825407 [B]  13/32  .346  .413
 5825421   7/16  .378  .445
5825435   15/32  .385  .484
5825449   1/2  .425  .524
5825463   17/32  .445  .543
5825470   35/64  .453  .551
5825477   9/16  .472  .571
5825505   5/8  .520  .618
5825533   11/16  .571  .669
5825547   23/32  .602  .728
5825561   3/4  .654  .779
5825589   13/16  .701  .827
5825617   7/8  .764  .890
5825645   15/16  .823  .949
5825673   .882  1.008
5825687   1-1/16  .941  1.067
5825701   1-1/8  1.000  1.126
5825743 [B]  1-5/16  1.177  1.303
5825771 [B]  1-7/16  1.295  1.421
[B] Limited stock availability; lead times and minimums may apply – call for details.   BACK TO TOP

Oetiker One Ear Clamps Two Ear – Stainless Steel

  • Made of UNS S30400 (DIN 1.4301) stainless steel
  • One-piece design made from spirally welded tubing
Part Number Note  Nominal OD  Minimum OD  Maximum OD
5822670 [B]  5/32  .122  .161
5822684   3/16  .118  .197
5822712   1/4  .197  .276
5822740   5/16  .276  .354
5822768   3/8  .319  .433
5822824   1/2  .433  .512
5822852   9/16  .492  .591
5822866   19/32  .551  .669
5822880   5/8  .591  .708
5822936   3/4  .638  .787
5822964   13/16  .713  .866
5822992   7/8  .752  .906
5823020   15/16  .831  .984
5823048   .886  1.063
5823062   1-1/16  .945  1.102
5823076   1-1/8  1.035  1.220
5823118   1-5/16  1.154  1.339
5823146   1-7/16  1.260  1.457
5823160   1-1/2  1.378  1.575
[B] Limited stock availability; lead times and minimums may apply – call for details.   BACK TO TOP

hose assembliesSANITARY PROCESS HOSE ASSEMBLIES

By combining our broad line of tubing, hose, and fittings, the optimum hose assembly for your application can be fabricated quickly. Let our Fabrication Team handle the assembly labor for you, so you receive a finished, pressure-tested, ready-to-install product. Contact an AdvantaPure Sales Representative to discuss your needs at 1-888-755-4370.

PDFClick to download a PDF version of our How to order assemblies brochure. How_to_order_assemblies.pdf (143kb)


molded endsMOLDED SILICONE ASSEMBLIES

Supplied as silicone fittings attached directly to silicone tubing or hose, the assemblies are well-suited for applications involving aseptic transfer, sterile processing, and other critical applications. The construction of Molded Silicone Assemblies allows the benefits of Class VI, platinum-cured silicone to remain constant throughout the assembly. READ MORE…


overmolded ends OVERMOLDED TRI-CLAMP® ENDS

A new option for sanitary connections is available… overmolded sanitary ends for PVC, TPE, and TPR tubing and hose. Injection molded from USP Class VI Hytrel® or polypropylene, overmolded ends feature Tri-Clamp® and mini Tri-Clamp styles. READ MORE…

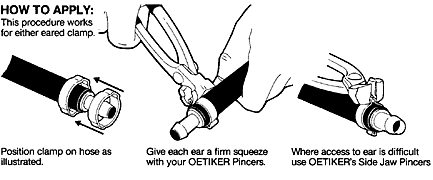

PINCERS

  • Use for proper crimping of clamps
  • Three styles to select from

standard jaw pincer

STANDARD JAW

Part Number: 9800182

side jaw pincer

SIDE JAW

Part Number: 9800203
